MSE PRODUCT SYSTEMS
MSE SYSTEMS. ONE
ENGINEERING PATH.
A redesigned product experience for EarthTech’s MSE, GRS-IBS, and RSS work: clear product choice, deep technical focus, and practical support from early evaluation through delivery.
CHOOSE A SYSTEM
Products Organized
by Project Need
Each product keeps the confirmed six-category structure, but the interface is designed around decision-making: product role, technical fit, advantages, and EarthTech support.
EARTHTECH ORIGINAL

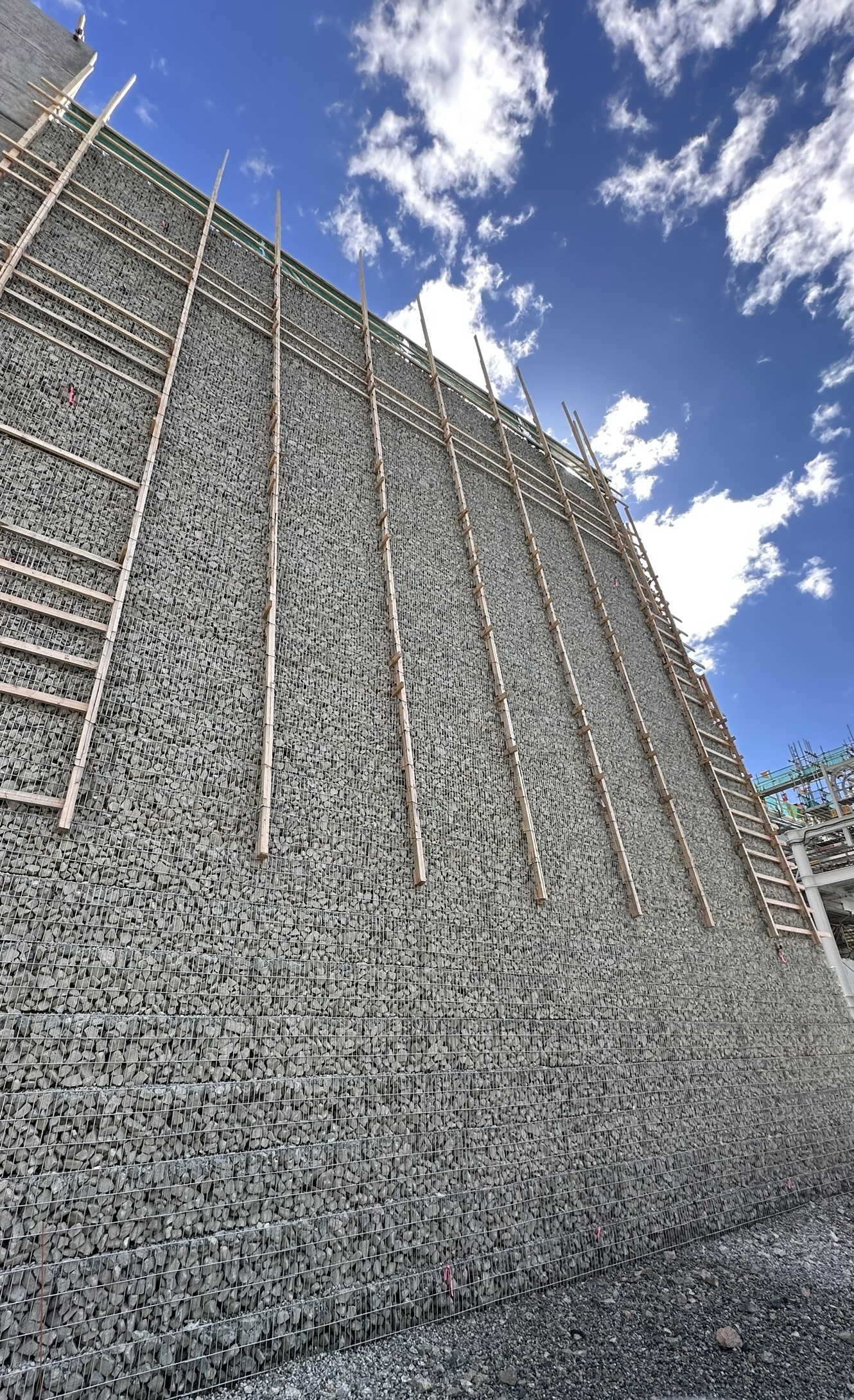

Semi-Extensible MSE Wall System, Complex Grade Separation Works
Reliable mechanical connection engaging welded wire facing and flexible polyester reinforcement. Designed for heavy duty, back-to-back berm, narrow wedges, light weight fill, land sliding, heavy duty, rainfall, seismic, waterfront, differential settlement and more.
APPLICATIONS
MSE retaining walls, RSS slopes, bridge approaches, grade separation projects, up to vertical wall conditions.
KEY ADVANTAGES
Cost-effective, off-site assembly, constructability, self-locking, recycled backfill, low creep, high strength.
SYSTEM COMPONENTS
Hot-dipped galvanized welded wire mesh, flexible polymeric reinforcement, anchoring rods, interlocking struts.
COMPARE THE ROLE
How E-Wire Works
The e-Wire system anchors any flexible polyester reinforcement to hot dipped galvanized Welded Wire Mesh (WWM) with reliable mechanical connection. The strut was specially designed to hook the WWM also the anchoring rod and the secure rod to robust the integrity of the system.
Semi-Extensible
The e-Wire system connects flexible polyester reinforcement to hot-dipped galvanized Welded Wire Mesh (WWM) through a reliable mechanical connection. Specially designed struts, anchoring rods, and secure rods strengthen overall system integrity.
Semi-Extensible Polyester
High strength and low creep with minimal connection gaps, connecting polymeric reinforcement to galvanized welded wire mesh using rods and interlocking struts for 90-degree walls and true abutment designs.
Cost + Build Efficiency
Off-site assembly streamlines construction with robust self-locking components, reducing installation time and labour while providing low life-cycle costs, long-term durability, and superior structural performance.
EARTHTECH SUPPORT
Selection to Delivery
EarthTech positions its product support as a one-stop service: matching MSE, GRS-IBS, and RSS systems to project needs, then supporting the work from drawing packages through inspection and construction coordination.
SELF-LOCKING
Up against a vertical wall, robust mechanical connection with approved high strength polymeric geogrid.
E-WIRE WRAP
Specially designed strut hold the bar against the wrapped geogrid for either vegetated or rock faced wall.
TWO-STAGED
The e-Wire and e-Panel systems using the same piece of polymeric geogrid.
